Primo Pneumatic Hangar

PRIMO Inflatable Hangar – Modular Shelter for Extreme Zones
Advanced solution for mining camps and critical operations in hostile environments.
The PRIMO Inflatable Hangar is a high-resistance modular structure designed to provide safe and functional shelter in extreme conditions. Ideal for mining operations in the Atacama Desert, bases in the Andes Mountains, field hospitals, and command centers, PRIMO combines advanced material technology, intelligent design, and ease of installation.

Key Features
Available usable space: 1,000 m², 500 m², and 100 m² depending on configuration.
Rapid installation: Under 70 minutes with trained personnel.
Robust structure: Airtight inflatable arches and high-resistance PVC fabric.
Modular and scalable design: Adaptable to various operational configurations.

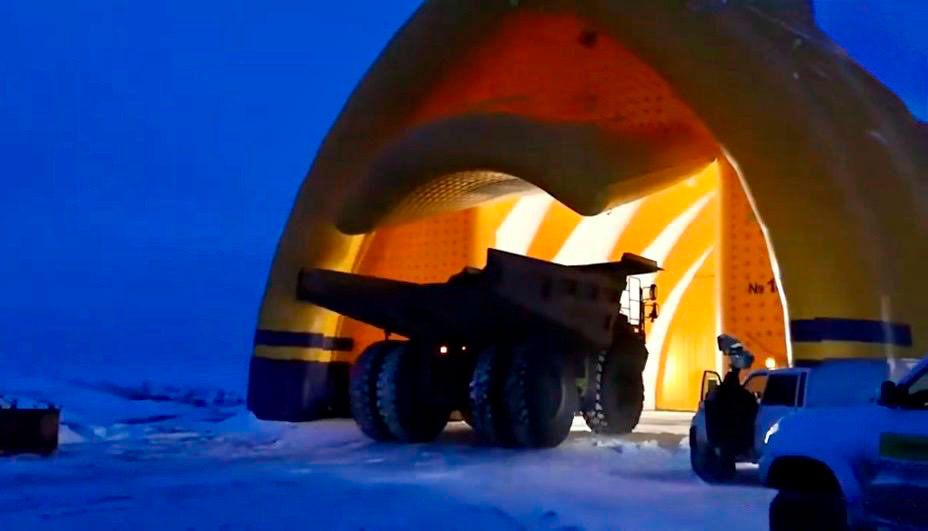

Full accessibility: 9×9 m automatic door for heavy machinery access.
Comfort and safety: LED lighting, efficient ventilation, and certified emergency exits.
Guaranteed durability: Over 5 years of field life, up to 10 years in fixed deployment.


Applications
Remote mining camps
Scientific bases in extreme climates
Disaster command centers
Field hospitals
Temporary storage for equipment and supplies


Technical Material Specifications
Composition: Polyester fabric coated with PVC or TPU composite material.
Thickness: ≥ 0.9 mm (total density 1000D).
Weight: ≥ 650 g/m².
Multilayer design: Enhances impact resistance and airtightness.
Structural reinforcements: Strips on edges and critical areas to prevent crack propagation.
Joints: High-frequency welding or thermal sealing (≥ 80% of base material strength).


Environmental Resistance
Operating temperature: From -60 °C to +70 °C.
UV exposure: No degradation after ≥ 2,000 hours.
Salt spray corrosion: ≥ 500 hours (ASTM B117).
Freeze/thaw cycles: High resistance without loss of elasticity.


Impact and Durability Tests
Elasticity maintained at -50 °C.
Minimum puncture resistance: ≥ 500 N.
Service life: ≥ 5 years in the field, ≥ 10 years in fixed deployment.


Certifications and Test Standards
Tensile strength: ASTM D5034 / ISO 13934
Tear resistance: ASTM D1424 / ISO 13937
Abrasion resistance: ASTM D3884 / ISO 12947
Puncture resistance: ASTM F1342
Flame retardancy: EN 13501-1 / NFPA 701 (Class B1)
Low temperature impact: ASTM D256
UV aging: ASTM G154
Salt spray corrosion: ASTM B117
Ignition test: Compliant with ASTM F963-11 (no ignition during tests)
